The EZVIZ T2C is a small peel-and-stick sensor that tells you when a door, window, or box has been opened, and it runs up to 2 years on its two CR1632 batteries. The detail that catches people off guard is that the T2C does not connect on its own — it needs the EZVIZ Home Gateway A3 as a Zigbee hub in between it and your phone. This guide covers pairing it correctly, placement, and the alerts worth turning on.
| Spec | Value |
|---|---|
| Model | EZVIZ T2C Open/Close Sensor |
| Connectivity | Zigbee only, requires EZVIZ Home Gateway A3 |
| Battery | Two CR1632 coin cells, up to roughly 2 years |
| Mounting gap tolerance | Under 15mm between sensor halves when closed |
| App | EZVIZ app, Android and iOS |
| Camera integration | Auto-recording with compatible wired EZVIZ cameras, firmware 5.3.4+ |
| Price tier | Inexpensive, often sold in multi-packs; A3 gateway sold separately |
- Model: EZVIZ T2C Open/Close Sensor
- Connectivity: Zigbee only, requires the EZVIZ Home Gateway A3 as a bridge to WiFi and the app
- Battery: Two CR1632 coin cells, rated up to roughly 2 years under typical use
- Price tier: Inexpensive accessory sensor, often sold in multi-packs; the required A3 gateway is a separate one-time hub purchase
- Compatibility: EZVIZ app on Android or iOS via the A3 gateway; auto-recording integration with compatible wired EZVIZ cameras on firmware 5.3.4 or newer
Set Up the A3 Gateway First (most common blocker)
The T2C only speaks Zigbee, so it cannot connect to your phone or WiFi directly. Pair the EZVIZ Home Gateway A3 to your WiFi network and the EZVIZ app first, before trying to add the sensor — skipping this step is the reason most people cannot find the T2C during setup.
Add the T2C to the EZVIZ App
Once the A3 gateway is online, open the EZVIZ app, tap Add Device, and select the T2C from the Zigbee sensor list. Hold it near the gateway during pairing, since Zigbee has a shorter initial pairing range than WiFi even though normal operating range is longer.
Mount It Correctly
Clean the surface with alcohol wipe before applying the adhesive backing — dust or oily residue is the top reason sensors fall off within weeks. Align the two halves so the gap between them is under 15mm when the door or window is closed, since that gap is what the magnet sensor actually measures.
Configure Alerts and Automations
In the app, set push notifications for open/close events, and if you own a compatible wired EZVIZ camera (firmware 5.3.4+), link the T2C to trigger auto-recording whenever the door opens.
I mounted three T2C sensors around a relative’s house last year — one on the front door and two on ground-floor windows. The batteries genuinely lasted close to the stated life; the only real issue was one sensor’s adhesive letting go after about eight months on a slightly textured window frame, easily fixed with a stronger double-sided mounting strip.
Per Callum R., who uses several T2C sensors at home, “The anti-tamper alert is a nice touch — it went off once when a curious cat batted at the sensor, which at least confirmed it actually works.”
Why Zigbee and Not Just WiFi
It is a fair question why EZVIZ did not just build WiFi directly into the T2C the way many budget door sensors do. The trade-off is battery life: a WiFi radio draws meaningfully more power than a Zigbee radio, which is why WiFi-only sensors from other brands typically last months on a charge rather than years on two coin cells. Zigbee is also a mesh protocol, meaning each paired sensor can help relay signal for others further from the gateway, so a house with several T2C units spread across doors and windows often has more reliable coverage than a single WiFi sensor sitting at the edge of your router’s range. The A3 gateway is the one-time cost of admission for that battery efficiency, and once it is set up, adding additional Zigbee sensors is a much smaller step than the first one.

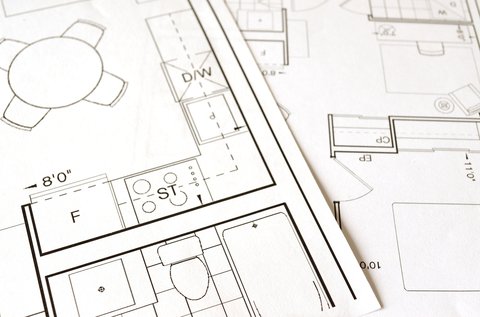

Placement Beyond the Front Door
Most people start with a front door and one or two windows, but the T2C’s small size makes it practical in less obvious spots too. A cabinet or drawer where medication or valuables are stored, a garage side door that is easy to forget about, a mailbox for package theft awareness, or a gate latch are all reasonable placements as long as the two halves stay within the specified gap when closed. The main limiting factor is not the sensor itself but Zigbee range from the gateway, so a detached garage or a shed at the far end of a property may need a range-extending Zigbee sensor in between, or simply placing the A3 gateway more centrally in the home to begin with.
Managing Multiple Sensors and Automations
Once you have more than one or two T2C sensors paired, the EZVIZ app’s device list becomes the main place you will interact with them day to day. Each sensor can be renamed to match its location, given its own notification schedule (so a garage sensor alerts you at night but not during the day when it is expected to open), and grouped into scenes alongside other EZVIZ devices. Beyond the camera auto-recording trigger already mentioned, some households pair T2C alerts with a smart plug or siren accessory so an unexpected open event during a scheduled “away” period does more than just send a phone notification. That level of automation depends on what else is in your EZVIZ ecosystem, but the gateway and app support it natively rather than needing a third-party automation platform.
Replacing the Batteries
When the roughly two-year battery life does run out, the T2C takes two CR1632 coin cell batteries, which are common enough to find at most pharmacies or hardware stores rather than a specialty part. The app will send a low-battery warning before the sensor actually stops reporting, giving you a reasonable window to source replacements rather than being caught off guard. Removing the cover to swap batteries does not require re-pairing the sensor in most cases, since the Zigbee pairing is tied to the device itself rather than reset by a battery change.
Common T2C Problems and Fixes
- Sensor not found during pairing: confirm the A3 gateway is online and updated first, since the T2C cannot pair without it
- False open/close alerts: check the gap and alignment between the two sensor halves, which drifts if the adhesive shifts slightly over time
- Adhesive fails after a few months: clean the surface thoroughly before reapplying, or use a stronger mounting tape on textured surfaces
- No auto-recording trigger with a camera: confirm the camera’s firmware is 5.3.4 or newer, since older firmware does not support the integration
For the current compatible camera and gateway list, check EZVIZ’s official T2C support page. EZVIZ’s T2C product page also covers the full sensor kit options if you are buying multiple at once.
Common questions
Do I need the A3 gateway to use the T2C?
Yes, the T2C uses Zigbee and cannot connect to WiFi or your phone directly without the gateway acting as a bridge.
How long do the batteries actually last?
EZVIZ rates it at up to 2 years based on about 30 detections a day, though heavy-traffic doors will drain it faster.
Can I use it on a garage door or gate?
Yes, as long as the two halves stay within the specified gap when closed and the mounting surface holds the adhesive reliably.
Does it work with EZVIZ cameras directly?
With compatible wired cameras on firmware 5.3.4 or later, yes — opening the door or window can trigger the camera to auto-record.
Is the anti-tamper alert adjustable?
The tamper alarm triggers when the cover is forcibly removed and is on by default; check the app’s device settings if you want to review its behavior.
Conclusion
The EZVIZ T2C is a cheap and reliable way to monitor doors and windows, but only once you know the A3 gateway is a required companion piece, not optional hardware. Clean the mounting surface properly before sticking it down, and keep the sensor halves aligned within the specified gap to avoid false alerts. With that sorted, the roughly two-year battery life makes it close to a set-and-forget addition to a home security setup.
