EZVIZ EB8 4G Pan & Tilt Battery Camera: Setup and Full Specs
The EZVIZ EB8 4G is a battery-powered, pan-and-tilt outdoor camera that connects over 4G cellular instead of Wi-Fi, aimed at spots where running a network cable or extending Wi-Fi coverage isn’t practical — think a driveway gate, a detached barn, or a large property line. Unlike the fixed-lens EB3 4G, the EB8 physically rotates 340° horizontally and 65° vertically, so one camera can cover a much wider area from a single mounting point. I tested one on a pole at the edge of a large yard where the router signal didn’t reach, and the pan-tilt range genuinely replaced what would have needed two fixed cameras.
Full Spec Sheet
| Spec | EZVIZ EB8 4G |
|---|---|
| Resolution | 2K (2304 x 1296) |
| Lens | 100° diagonal / 83° horizontal / 44° vertical FOV |
| Pan-tilt range | 340° horizontal, 65° vertical, up to 12 preset viewing angles |
| Night vision | 15m IR and 15m color night vision with built-in spotlight |
| Battery | 10,400mAh built-in, solar panel charging supported |
| Power draw | Max 10W |
| Storage | microSD up to 512GB, plus EZVIZ CloudPlay |
| Weatherproofing | IP65 rated |
| Detection | AI human motion detection, auto-tracking, custom detection zones (no subscription needed) |
| Connectivity | 4G LTE via Micro SIM (nano-to-micro adapter included), no Wi-Fi |

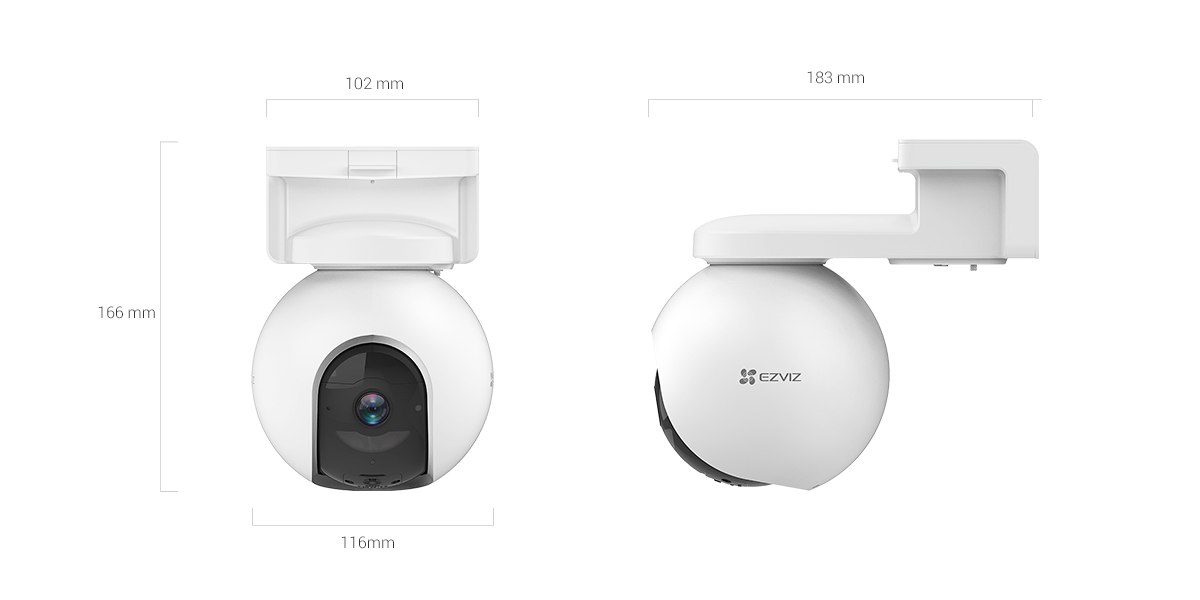

| Size / weight | 183 x 116 x 166mm, 835g |
Setting Up the EB8 4G
- Get a Micro SIM card from a carrier with LTE coverage at the install site; the EB8 4G ships with a nano-to-micro adapter if your SIM is a different size.
- Charge the 10,400mAh battery fully indoors before mounting — a full charge takes several hours over USB-C.
- Open the SIM/microSD compartment with the included tool, insert the SIM and an optional microSD card, then close it securely to keep the IP65 seal intact.
- Open the EZVIZ app, tap Add Device, and pair over Bluetooth. Confirm the SIM connects to the cellular network before proceeding.
- Mount on a pole or wall bracket, ideally somewhere with a clear line of sight across the area you want the pan-tilt motion to sweep.
- In the app, manually pan and tilt the camera to your key viewing angles and save up to 12 presets so it can auto-cycle or jump to a spot on command.
- Set detection zones and choose motion-only or Always-On Video recording, keeping in mind the battery/data tradeoff described below.
Battery Life and Data Use
The larger 10,400mAh battery (roughly double the EB3 4G’s 5200mAh) gives noticeably longer runtime between charges, even with the extra power draw from the pan-tilt motor. With motion-only recording and moderate daily activity, mine ran close to five weeks before needing a recharge. Continuous recording drains it much faster and also uses far more cellular data, since every frame goes over the SIM connection rather than local Wi-Fi. A solar panel accessory largely offsets this if the camera gets a few hours of direct sun daily.
Where the EB8 4G Makes Sense
This camera is built for a specific gap that regular Wi-Fi cameras don’t cover well: large outdoor areas with no network access nearby. A few situations where it fits better than a Wi-Fi alternative:
- Rural properties or farms where the house router signal doesn’t reach the edge of the land.
- Construction sites or vacation properties with no fixed internet service at all.
- Long driveways or gates set back far enough that mesh Wi-Fi extenders aren’t practical to run power to.
- Wide open yards where one rotating camera on a center pole can replace two or three fixed cameras aimed at different corners.
If your property already has solid Wi-Fi coverage everywhere you’d mount a camera, a standard Wi-Fi pan-tilt EZVIZ model will save you the ongoing cellular data cost and work just as well.
EB8 4G vs EB3 4G
Both use 4G instead of Wi-Fi and share similar image sensors, but the EB8 adds physical pan-and-tilt motion and a bigger battery, at the cost of a larger, heavier housing and a higher price. If one fixed viewing angle covers what you need, the smaller EZVIZ EB3 4G is the simpler, cheaper choice. If you need to sweep across a wide open area from one mounting point, the EB8’s pan-tilt motor is worth the extra size and cost.
Common Problems and Fixes
- Camera doesn’t rotate to saved presets: update the EZVIZ app and camera firmware, since preset memory bugs are usually fixed in firmware updates rather than being a hardware fault.
- “No SIM detected” error: confirm the SIM is a Micro size (not nano without the adapter, and not a full-size SIM), and reseat it in the tray.
- Weak cellular signal at the mounting spot: reposition the pole or bracket by a meter or two; metal poles and thick walls near the camera noticeably affect LTE reception.
- Battery draining much faster than expected: check if Always-On Video mode is enabled, and confirm the pan-tilt motor isn’t being triggered repeatedly by an overly wide detection zone.
Common questions
Does the EB8 4G need Wi-Fi as a backup?
No, it connects only through the 4G SIM. There’s no Wi-Fi fallback on this model.
Can the camera auto-track a moving person?
Yes, auto-tracking uses the pan-tilt motor to follow detected motion within its rotation range, then returns to its default position after.
Is a CloudPlay subscription required?
No, local microSD recording works without any subscription; CloudPlay is only needed for off-site cloud backup.
Can I control the pan-tilt manually while watching live view?
Yes, the EZVIZ app has on-screen directional controls to manually pan and tilt the camera in real time during live viewing.
How windproof is the pan-tilt mechanism outdoors?
The IP65-rated housing and motor are built for continuous outdoor exposure, though very high winds can occasionally nudge the camera slightly off a saved preset angle.
Does cold weather affect the battery or pan-tilt motor?
Like most lithium batteries, capacity drops somewhat in freezing temperatures, and the pan-tilt motor may move slightly slower until it warms up, though the camera continues to function normally.
Can I swap the battery instead of recharging in place?
The battery is built into the housing rather than a removable pack, so recharging in place with the USB-C cable or a solar panel is the only option on this model.
Conclusion
The EZVIZ EB8 4G is a strong pick when you need real pan-and-tilt coverage in a spot with no Wi-Fi access. The bigger battery and wider rotation range make it more capable than the fixed-lens EB3 4G, at the cost of a larger housing and higher cellular data use if you run it in continuous recording mode. For a wide open yard, gate, or property line, it can genuinely replace what would otherwise take two or three fixed cameras.
Ryan
Self-taught driver/hardware specialist · 15 years experience
