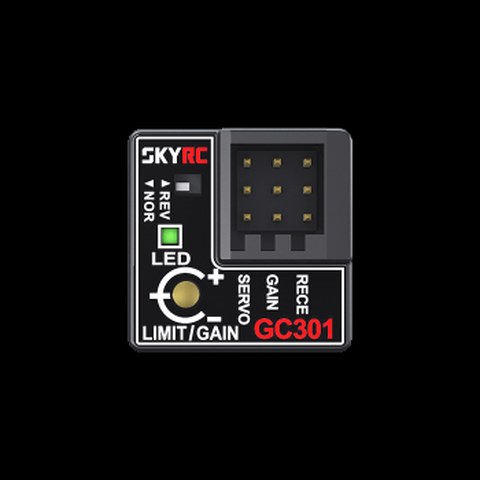

SkyRC GC301 Steering Gyro Explained: Tuning Drift Cars for Better Control

Quick clarification up front, same as with other SkyRC accessory posts: the SkyRC GC301 is a steering gyro stabilizer, not a battery charger. If drift racing or precision on-road handling is on your radar, though, this small accessory is one of the more affordable ways to noticeably tighten up your car’s steering behavior.

Key Specs

• Type: Steering gyro stabilizer for RC drift and on-road cars
• Function: Automatically corrects steering output using onboard sensors and algorithms
• Gain adjustment: via transmitter CH3 channel or onboard trimmer knob
• Installation: sits between the receiver and the steering servo
• Purpose: heading-hold effect that keeps the car tracking your intended direction despite traction loss

What a Drift Gyro Actually Does

In a drift car, the rear tires are intentionally low-grip to encourage controlled oversteer, but that same low grip makes precise steering corrections genuinely difficult for a human thumb to manage at speed. A gyro like the GC301 sits between the receiver and steering servo, constantly measuring the car’s actual yaw rotation against what your steering input is asking for, and nudging the servo to correct the difference automatically.

• Counters unwanted oversteer or wheel spin-induced rotation automatically
• Keeps the car’s heading closer to your intended line even when rear traction breaks loose
• Reduces how much fine steering correction the driver needs to make manually mid-drift

This is fundamentally different from a standard on-road setup, where the car is expected to hold grip through the corner and a gyro is unnecessary or even counterproductive — on-road racers generally do not run steering gyros because they interfere with precise, grip-based cornering.

Installing the GC301

1. Disconnect the steering servo lead from the receiver’s steering channel
2. Connect the GC301 in-line between the receiver and the steering servo
3. Power the gyro from the receiver’s battery/BEC output as normal
4. Set your desired gain adjustment method (transmitter channel or onboard trimmer)
5. Test on a stand first, confirming the steering corrects in the proper direction before driving

Trimmer vs Transmitter-Channel Gain Adjustment

The GC301 offers two ways to dial in gyro gain, and each suits a different type of driver:

• Onboard trimmer: simple, set-and-forget adjustment made directly on the gyro itself before driving — good for drivers who find a gain setting they like and rarely change it
• Transmitter CH3 channel: lets you adjust gain on the fly from the transmitter while driving, which is far more useful for experimenting with different track conditions or tire compounds in a single session

I started out using just the trimmer while learning what “correct” gain even felt like, then switched to CH3 control once I understood the car well enough to want to tune gain per-run rather than leaving it fixed. Too much gain and the car fights your steering input unpredictably; too little and the gyro barely does anything useful.

Getting the Gain Setting Right

Gain tuning is genuinely the whole game with a gyro like this. Start low and increase gradually — if the steering feels twitchy, jittery, or actively fights your inputs during a straight-line drive, gain is set too high. If drift corrections feel exactly like they did with no gyro at all, gain is too low. The right setting sits somewhere in between where corrections feel assisted rather than automated.

“Running the GC301 with CH3 gain control let me tune per-track without pulling the car apart to adjust a trimmer between runs. Made a real difference dialing in different tire setups.” — Tobias R., drift RC racer, posting on a drift-specific RC forum

Common Installation Mistakes

• Wiring the gyro backwards, which causes the correction to fight the driver’s input rather than assist it — always test on a stand first
• Setting gain far too high right out of the box, leading to twitchy, unpredictable steering that feels worse than no gyro at all
• Forgetting to re-check gain after switching tire compounds or track surfaces, since traction changes shift what “correct” gain feels like
• Mounting the gyro loosely, which can introduce vibration-induced noise into its sensor readings

Gyro vs No Gyro: What Actually Changes

Driving the same car with and without the GC301 active makes the difference obvious fairly quickly. Without a gyro, correcting an unexpected slide requires fast, precise thumb input that even experienced drivers struggle to nail consistently. With the gyro active and gain reasonably tuned, a lot of that correction happens automatically, letting the driver focus more on throttle modulation and line choice rather than constantly fighting small unexpected rotations.

1. Without gyro: full manual correction responsibility falls on the driver’s steering input
2. With gyro (well-tuned): automatic micro-corrections smooth out unexpected rotation, driver focuses on bigger-picture line and throttle
3. With gyro (poorly tuned): corrections fight driver input unpredictably, often feeling worse than no gyro at all

That middle ground — gyro well-tuned — is really the entire value proposition, and it is worth the patience of a few tuning sessions to get there rather than giving up after one bad first impression with gain set too aggressively.

Frequently Asked Questions

Is the SkyRC GC301 a battery charger?

No. It is a steering gyro stabilizer for RC cars, used to automatically correct steering output during drift or on-road driving. It has no charging function.

Do on-road racers need a steering gyro?

Generally not for traditional grip-based on-road racing. Gyros are primarily used in drift racing, where controlled oversteer and low rear traction make manual steering correction much harder.

Can I adjust gyro gain without a spare transmitter channel?

Yes, the GC301 includes an onboard trimmer knob as an alternative to transmitter CH3 control, letting you set gain manually without needing a free channel.

Where does the GC301 get installed?

It installs in-line between the receiver’s steering channel and the steering servo, intercepting and adjusting the steering signal before it reaches the servo.

Conclusion

The SkyRC GC301 is a straightforward, affordable way to add heading-hold stabilization to a drift build, and the dual gain-adjustment options (trimmer or transmitter channel) make it flexible for both casual and competitive drift setups. Just remember it belongs in the “handling accessory” category, not the charger drawer.
