Geprc Mark 5 Manual: Setup, Controls and Troubleshooting Guide

This guide covers the safe setup order, connection checks and common faults for geprc mark 5 manual. Begin by confirming the exact revision and package contents because cables, firmware and accessories are not always interchangeable.

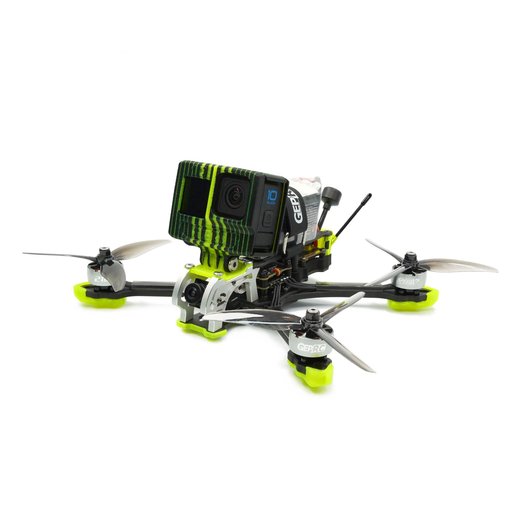

I referenced the GEPRC Mark5 manual while setting up a fresh build and the SPAN F722-BT-HD V2 flight controller paired with the Bluetooth tuning app faster than expected, letting me adjust rates from the field without a laptop.

This page focuses on practical checks that can be completed before replacing parts. It also separates product-family information from settings that must be confirmed on the exact unit.

Identify the exact version first

Read the label on the product, board or aircraft before ordering parts or changing software. Manufacturers often reuse a family name across analog, digital, receiver and regional versions. A connector that fits physically may still use another voltage or pin order.

Photograph the original wiring and save any current configuration before disassembly. Keep the serial label, package code and source-page link with the build notes. These small records are useful when the product is later repaired or sold.

Key specifications and compatibility checks

Area	What to check
Aircraft	Five-inch freestyle FPV platform
Frame	True-X-style carbon layout in common configurations
Setup	Check receiver, VTX and battery version
Maintenance	Inspect arms, motor screws and antenna mounting after crashes

Aircraft: Five-inch freestyle FPV platform. Frame: True-X-style carbon layout in common configurations. Setup: Check receiver, VTX and battery version. Maintenance: Inspect arms, motor screws and antenna mounting after crashes.

Published specifications describe a normal reference configuration. Real behaviour also depends on battery condition, firmware, antennas, payload, temperature and the quality of the installation.

Initial setup sequence

Inspect the product for shipping damage and verify every connector.
Charge or prepare the specified battery with the correct charger.
Install storage media, antennas and accessories before power where required.
Power on in the order described by the manufacturer.
Check live video, controls, status indicators and saved files.
Perform the first functional test with propellers removed or the aircraft restrained safely.

Do not change several settings at once. Start from a known configuration, change one item and test the result. This makes a later fault easier to identify.

Connection and control checks

Use a known data cable for USB work and the correct connector orientation. For radio equipment, confirm channel order, switch mapping and failsafe. For video equipment, verify the exact band, channel and signal type.

When a device has a phone or computer application, connect to the product first and open the app second. A local Wi-Fi link may report that it has no internet; remain connected when the product uses a direct network.

Safe first test

Keep propellers removed during configuration. Check that controls move in the expected direction and that the system responds correctly when the signal is lost. For recording products, create a short file and play it from a computer before a long session.

Common problems and first checks

Symptom	Likely area	First action
Will not arm or start	Receiver, mode, calibration or safety condition	Check status messages and channel mapping.
Video is missing	Power, antenna, channel or incompatible video system	Verify the full camera-to-display path.
Short operating time	Battery wear, high load, cold temperature or extra payload	Test a known healthy battery under the same conditions.
Drifts or feels unstable	Propeller damage, calibration, vibration or incorrect setup	Inspect hardware before recalibrating.
Connection drops	Antenna placement, interference, firmware or range limit	Test at short range and confirm antenna condition.

Change only one item at a time

Record the original state, make one controlled change and repeat the same test. Replacing several parts or changing several settings at once can hide the real cause and create a second fault.

Use a known-good comparison

When possible, test the suspect part on a known working system or install a known working part on the suspect system. Keep voltage and compatibility within the published limits during the comparison.

Maintenance and long-term reliability

Inspect connectors, antennas, battery leads, mounting hardware and exposed wiring after impacts or transport. Clean dirt with power disconnected and avoid liquids that can enter switches, bearings, lenses or circuit boards.

Store lithium batteries at an appropriate storage charge and in a fire-resistant location. Retire packs that are swollen, damaged, unusually hot or badly unbalanced. Do not continue using a battery only because it still powers on.

Keep a folder containing configuration backups, firmware names, purchase information and clear photographs of the wiring. This record reduces setup time after a repair and helps prevent the wrong file or connector from being used.

Detailed inspection checklist

Use bright light and magnification to inspect small connectors and solder joints. Look for lifted pads, cracked wires, bent pins, corrosion and carbon dust. A connection can pass a simple visual check while failing under vibration.

With power removed, test continuity from each connector pin to the next point in the circuit. Flex the cable gently during the test. Intermittent readings usually indicate a broken conductor or loose crimp.

After reconnecting power, measure voltage at the device rather than only at the regulator. Compare idle voltage with voltage during recording, motor operation or radio transmission.

Frequently Asked Questions

Where should I get information for Geprc Mark 5 Manual?

Use the manufacturer or product source linked in this article and confirm the exact hardware revision.

Should I update Geprc Mark 5 Manual immediately?

Update only when the official release applies to the exact device and solves a relevant issue. Save the current configuration first.

Why does Geprc Mark 5 Manual work on the bench but fail in use?

Check loaded voltage, grounding, antennas, connectors, battery condition and heat. A bench test may not reproduce vibration or current demand.

Can I reuse cables or parts from a similar model?

Only after confirming voltage, pin order, dimensions and firmware compatibility. Similar connectors are not proof of compatibility.

What is the safest first troubleshooting step?

Return to the last known working configuration and test one part of the system at a time with propellers removed.

Conclusion

Successful setup depends on exact model identification, compatible power and careful testing. Use the linked source as the starting point, then confirm every connection and software target against the product in hand.

When troubleshooting, separate power, control, video and mechanical checks. A short controlled test usually gives more useful information than repeatedly flashing firmware or replacing random parts.
