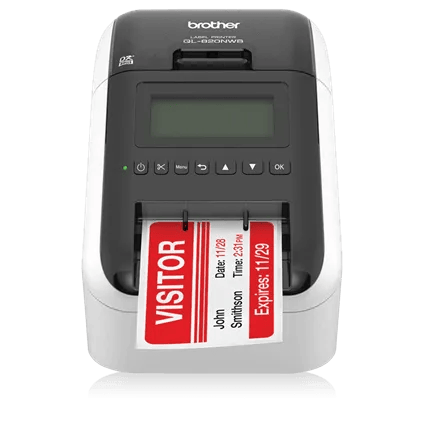

Brother QL-820NWB Driver Download for Windows

The Brother QL-820NWB is a network label printer with Wi-Fi, Ethernet, and Bluetooth built in, which makes setup slightly more involved than a plug-and-play USB label printer. Getting the driver and P-touch Editor installed correctly the first time saves you from chasing connection errors later.

I set this printer up for a small retail counter that needed fast visitor and shipping labels, and the trickiest part was not the driver itself — it was making sure the printer joined the same Wi-Fi network as the PC before running the installer. Once that was sorted, printing worked immediately.

Quick Spec Reference

Downloading the Brother QL-820NWB Driver

Brother’s support site organizes downloads by exact model, and the QL-820NWB and QL-820NWBc pages are separate even though the hardware looks nearly identical, so double-check you picked the right one.

1. Go to the official Brother QL-820NWB downloads page.
2. Select your Windows version and choose the Full Driver & Software Package rather than a driver-only download.
3. Run the installer and choose your connection type when prompted — USB, wireless, wired network, or Bluetooth.
4. For wireless setup, use the printer’s LCD menu to join your Wi-Fi network before the installer tries to find it.
5. Finish the wizard and print a test label to confirm the connection.

The Full Driver & Software Package includes P-touch Editor, which is the label design app most QL-series owners actually use day to day, plus the Printer Setting Tool for adjusting network and print-quality options.

Manual Driver Install via Device Manager

For a USB-connected QL-820NWB, you can install the driver manually if the full installer will not complete.

1. Download and extract the driver package instead of running the installer directly.
2. Connect the printer via USB and power it on.
3. Open Device Manager, find the QL-820NWB (often under “Other devices” or “Printers”), right-click it, and choose Update driver.
4. Select Browse my computer for drivers and point to the extracted folder.

Fixing Common Brother QL-820NWB Problems

Printer Not Found During Wireless Setup

• Confirm the printer and PC are on the exact same Wi-Fi network — a phone hotspot or guest network will not work.
• Check the printer’s LCD screen for its assigned IP address and make sure it is not showing 0.0.0.0, which means it failed to get an address from the router.
• Temporarily disable VPN software on the PC during setup, since some VPNs block local network discovery.

Labels Print Blank or Cut Off

1. Open the Printer Setting Tool and confirm the correct label size (DK roll) is selected to match what is loaded.
2. Reseat the DK roll — it needs to click firmly into place or the sensor will misread the label length.
3. Run the built-in cleaning function from the driver’s printer properties if print quality looks faded rather than blank.

Bluetooth Pairing Fails

• Make sure Bluetooth is enabled on both the PC and the printer — press and hold the printer’s Bluetooth button until the LED lights up.
• Remove any previous pairing entry for the printer in Windows Bluetooth settings before pairing again.
• Bluetooth on this model is meant mainly for mobile printing via the Brother iPrint&Label app; for a desktop PC, USB or Wi-Fi is generally more reliable.

Per Priya S., who is a Warehouse Supervisor at a fulfillment company, “We run several QL-820NWB units on the network setting and once they’re joined to Wi-Fi, they’re rock solid — the only hiccup is always during that first pairing step.”

Reinstalling After a Failed Install

1. Uninstall the existing Brother driver and P-touch Editor from Settings > Apps.
2. Restart the computer.
3. Power-cycle the printer — turn it off, wait 10 seconds, then turn it back on.
4. Reinstall using a freshly downloaded copy of the Full Driver & Software Package.

Choosing the Right Label Roll

The QL-820NWB accepts Brother’s DK-series continuous and die-cut rolls, and picking the wrong one is a common reason labels look misaligned even when the driver is set up correctly.

Frequently Asked Questions

Which download should I choose for the QL-820NWB?

Choose the Full Driver & Software Package rather than a driver-only file — it includes P-touch Editor and the Printer Setting Tool, both of which most users need.

Can I use the QL-820NWB over USB and Wi-Fi at the same time?

Yes, but you will need to add the printer twice in Windows (once per connection type) since each connection is treated as a separate printer instance.

Why does my printer show as offline in Windows?

This usually means the IP address changed after a router restart. Reassign a static IP for the printer in your router settings, or rerun the wireless setup wizard.

Does the QL-820NWB work with Mac and Linux too?

Yes, Brother provides separate driver packages for Mac and Linux on the same downloads page.

What is the difference between the QL-820NWB and QL-820NWBc?

The QL-820NWBc adds support for two-color (black and red) printing on compatible DK-2251 label rolls, while the standard QL-820NWB prints black only.

Conclusion

The Brother QL-820NWB is straightforward to set up once the printer is actually joined to your network before you run the installer — that single ordering detail is behind most of the “printer not found” problems people run into.

If wireless setup keeps failing, falling back to a direct USB connection for the initial driver install, then switching to Wi-Fi afterward through the Printer Setting Tool, is a reliable workaround.
